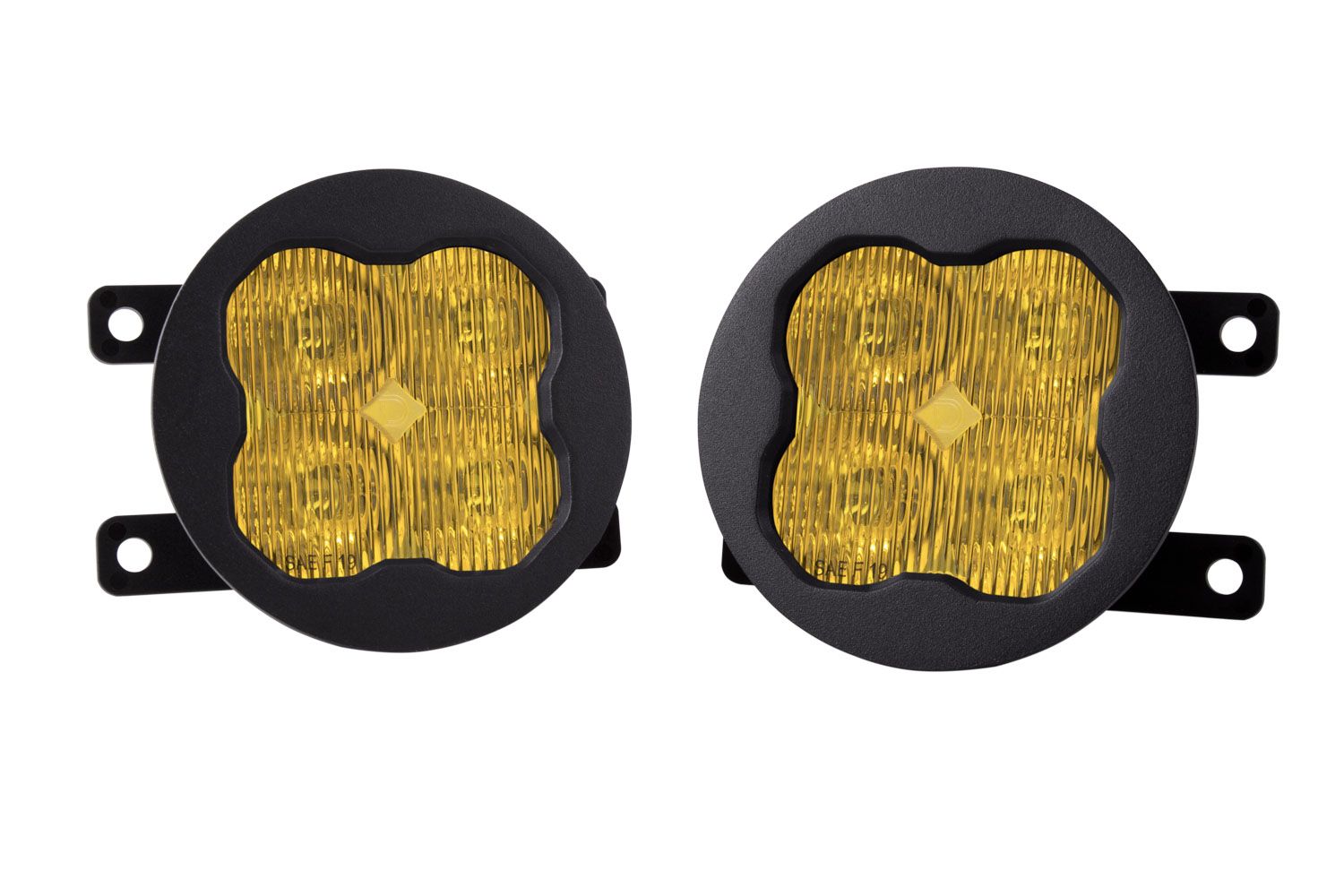

SS3 LED Fog Light Kit
- Direct replacement for your factory fog lamps
- SAE-compliant road-legal output, Advanced TIR optics provide high efficiency and focus
- Includes angled bezel, for factory-style appearance
- Plug and play, no modification needed, Durable powdercoated aluminum die-cast
In the Box:
- Two (2) SS3 3” Angled LED Pods
- Two (2) H11 DT Adapters
- Mounting brackets and hardware
Return Policy: 30-day Return with no restocking fee
SS3 vs Market Leaders
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
|
|
|
|
|
|---|---|---|---|
SAE DrivingSAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional “spot” pattern, the Stage Series Driving pattern shines in an 18×8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds. When installed as a pair and aimed in accordance with your state’s regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability. |
SAE FogSAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather. |
White or YellowAll Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. |
Sport or ProStage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. |
Technical Details
| Brand | Diode Dynamics |
|---|---|
| Color | Yellow SAE Fog without Backlight |
| Vehicle Service Type | Car |
| Special Feature | Waterproof |
| Wattage | 38.5 watts |
| Lens Color | Yellow |
| Lens Material | Plastic |
| Item Dimensions LxWxH | 14 x 11 x 4 inches |
| Manufacturer | Diode Dynamics |
| Model | DD6687 |
| Item Weight | 3.21 pounds |
| Product Dimensions | 14 x 11 x 4 inches |
| Item model number | DD6687 |
| Exterior | Polished |
| Manufacturer Part Number | DD6687 |
| Special Features | Waterproof |
| Safety Rating | DOT Certified |
